FIND OUT MOREFuel and Lube Oil Test Cabinets

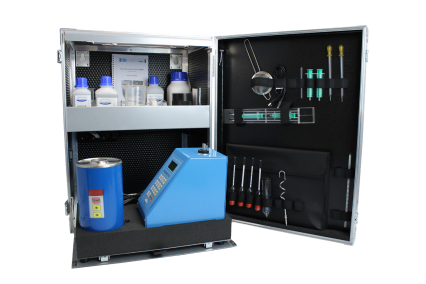

The Fuel and Lube Oil Test Cabinet is a comprehensive, portable laboratory designed for on-site monitoring of fuel, lubricating, and hydraulic oil condition. It allows engineers to perform key analyses quickly and accurately, helping to detect contamination, wear, and degradation before damage occurs. Immediate results enable informed maintenance decisions, improving reliability and efficiency across all vessel systems.
For more detailed information on this product including a comparison between the versions, please view our data sheet.
Features
- Comprehensive Testing: Includes viscosity, water, base number, and contamination checks.
- Portable Design: Compact and mountable for use onboard or in workshops.
- Custom Configurations: Available in basic or advanced versions with additional test options.
- Efficient Operation: Built-in lighting and workspace for convenient testing.
Benefits
- Accurate Diagnostics: Detects early signs of oil degradation and contamination.
- Reduces Downtime: Enables proactive maintenance and quicker response.
- Flexible Options: Customisable for specific vessel or oil type requirements.
- Improves Reliability: Extends equipment life through regular monitoring.
Products in this range
Show
entries
Previous
Next
| Test | Measuring Range | Measuring Time | Accuracy / Notes |
|---|---|---|---|
|
Test Basic Version - T4748 |
Measuring Range |
Measuring Time |
Accuracy / Notes |
|
Test Water-in-Oil |
Measuring Range 0 – 1.0 vol.% H₂O |
Measuring Time 2 – 20 min (depending on value) |
Accuracy / Notes ±3% |
|
Test Base Number (BN) |
Measuring Range 0 – 150 BN |
Measuring Time 2 – 20 min (depending on value) |
Accuracy / Notes ±1 BN |
|
Test Oil Viscosity |
Measuring Range Max. lube oil range |
Measuring Time Approx. 3 min |
Accuracy / Notes - |
|
Test Heated Electronic Falling Ball Viscosity |
Measuring Range Viscosity: 1 – 999 mm²/s Density: 0.82 – 1.05 g/ml |
Measuring Time Approx. 15 min |
Accuracy / Notes ±3% (Sample: 200 ml) |
|
Test Saltwater Contamination |
Measuring Range Go / No-Go |
Measuring Time Approx. 10 min |
Accuracy / Notes - |
|
Test Spot Test |
Measuring Range All lube oils |
Measuring Time Approx. 1 min |
Accuracy / Notes - |
|
Test Compatibility Check |
Measuring Range All heavy fuel oils + MGO |
Measuring Time Approx. 10 min |
Accuracy / Notes Go / No-Go (Sample: 2 × 50 ml) |
|
Test |
Measuring Range |
Measuring Time |
Accuracy / Notes |
|
Test T4847 Option I also includes: |
Measuring Range |
Measuring Time |
Accuracy / Notes |
|
Test Flash Point Check |
Measuring Range Ambient temperature – 200 °C |
Measuring Time Approx. 15 min |
Accuracy / Notes ±2% (<100 °C), ±6 °C (>100 °C) |
|
Test Pour Point Check |
Measuring Range -20 °C to +30 °C |
Measuring Time Approx. 10 min |
Accuracy / Notes ±2 °C |
|
Test |
Measuring Range |
Measuring Time |
Accuracy / Notes |
|
Test T4848 Option II also includes: |
Measuring Range |
Measuring Time |
Accuracy / Notes |
|
Test MT Cat Fines Check |
Measuring Range - |
Measuring Time Approx. 15 min |
Accuracy / Notes Up to 8 simultaneous measurements, visually quantifiable |
|
Test Total Iron Check |
Measuring Range 15/20 – 1100 mg/kg (ppm) |
Measuring Time Approx. 20 min (for two cylinder drain oil samples) |
Accuracy / Notes ±20 mg/kg (ppm) at 70 °C using LED illuminance meter |
